Details

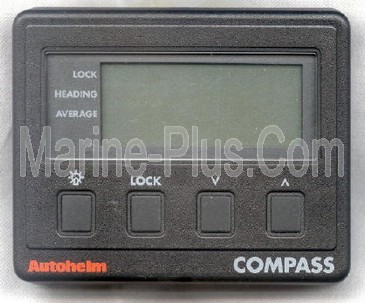

Compass displays Heading information directly from the Fluxgate Compass or, if the unit is used as a repeater, via the SeaTalk bus using data taken from another Compass Instrument or Autopilot.
This Compass can also be used as a Steering Indicator to maintain a given course. Any Helmsmans error, to Port or Starboard, is indicated by a bargraph at the bottom of the display.
NOTE: Works Great! Very Light Scuff Marks on LCD Face but NOT Very Noticeable ... Please See Pics.
Specifications ...
- Dimensions: 110w x 88h x 42d mm (4.3w x 3.4h x 1.6d in)
- Power supply: 10 to 16.5V (12V nominal)
- Current consumption: 45ma (normal) 90ma (Illumination on)
- Operating temperature range: 0 to 70°C
- Illumination: 3 selectable levels
- Repeater capability: Software programmable
Additional Information
| Name | Autohelm ST30 Compass Package (New, Old Stock) |
|---|---|
| Manufacturer | Autohelm |
| SKU | Autohelm-ST30-Compass |
| Weight | 4.0000 |
| Condition | NEW (Old Stock) |
| Shipping Time | Ships 1 BIZ Day After Purchase! |
| Exchange Credit | No |
| Special Price To Date | Apr 5, 2021 |
| Manufacturer's Suggested Retail Price | $650.00 |
