Details

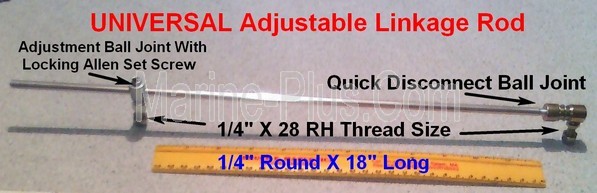

Heavy Duty 1/4" Round by 18" Long Marine Grade Aluminum Rod with One (1) Slide-Locking Straight Ball Joint (1/4-28 Stud) & One (1) Zinc-Plated Steel Quick Release 90 Degree Ball Joint (1/4-28 Stud).
NOTES: This is the Same Linkage Rod Used in Our OCM HD-101 Heavy Duty Rudder Follow-Up Unit. Also, I Ship USPS Priority or UPS so the S&H of 1 Pound Weight is Based on the Unusual 18" Length to Package Correctly for SHIPPER to Handle & Prevents Me Shipping via Flat/Discounted Rates.
Suggested INSTALLATION & Adjustment:
Position Rudder Tiller/Quadrant & RFU Swivel Arm to Amidships & Install the 2 Ball Joint Studs Equal Distance OUT from BOTH Center of Rudder Post & RFU Swivel Arm Pivot Point.
Not Important on which Ball Joint gets Installed in Tiller Location, Your Choice for Your Application!
With Quick Release 90 Degree Ball Joint on Rod & Detached from its Stud Run ROD Through INSTALLED Slide-Locking Ball Joint then Reconnect Ball Joint End & TIGHTEN SS Allen Screw In Place. NOW Equal Distances Centers OUT & Also Equal Distances Across Should Be Correct
Depending on Your Application ... Excess Length of ROD May Be CUT OFF After Sea Trial & Final Adjustment!
SAFETY CHECK ... For Autopilot or Steering Control You NEED to CHECK Your Rudder Sensor Installation Instructions for Any Questions/Concerns BEFORE USE!
Additional Information
| Name | 18" Universal Adjustable Ball Joint Linkage Rod (Custom NEW) |
|---|---|
| Manufacturer | ONCOURSE MARINE |
| SKU | OCM-UNI-RFU-ROD |
| Weight | 1.0000 |
| Condition | NEW (Custom Made) |
| Shipping Time | Ships 1 BIZ Day After Purchase! |
| Exchange Credit | No |
| Special Price To Date | Jul 4, 2024 |
| Manufacturer's Suggested Retail Price | $150.00 |
