Details
The Brightest, Most Reliable LCD Display for Rugged, Marine Applications
High quality 19" LCD Display backlighting, making it suitable for use in enclosed wheelhouses. KEP LCDs are the right choice for ease of installation, outstanding viewing capabilities, and reliability.

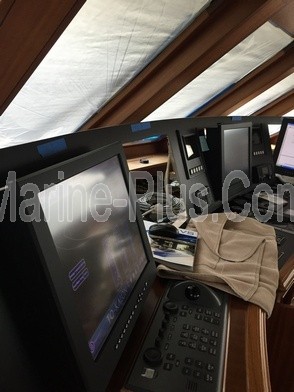

Recently Removed From a Working Pilot House Panel Console during Vessel Upgrade ... Please View Above Pictures.
3 Working Monitors Available as of This Posting 5-26-16 ... 2 are Pilot-19T Manufactured in 2008 & 1 Pilot-19 Manufactured in 2007. Contact Admiral Log BEFORE Purchase IF More Than One is Needed!
PURCHASE Here is for ONE (1) Monitor ... Pilot-19T Model with S/N: 08/00055
.
GENERAL Specifications:
LCD Display 19" TFT Active Matrix Panel
Brightness 400nit
Max. Resolution 1280x1024
Contrast (800:1)
View Angle 80/80 (H) 85/85 (V)
Display Colors 16.7M
Operating Temp (-10 to 55C) with Non Operating Temp (-20 to 70c)
Standard Inputs 3-VGA’s (RGB Analog 0.7V Peak to Peak) UXGA, 2-DVI’s SXGA
Standard Video Inputs 3-Composites, 1-S-Video
Color KEP Gray
Input Power 12/24Vdc universal input
Power Consumption 7.7 A at 12Vdc; 3.6 A at 24Vdc
Dimming Wide dimming range to Black
Red Mode YES
Picture-n-Picture Yes three stages
Front Window AR hard coated glass
Bezel & Rear Case Marine aluminum UV protected powder coating
Enclosure Nema4/IP66 from front
EN60945 Yes
Communications YES RS232 or Ethernet
Controls Front Mount
Bezel Dimensions, Cutout Dimensions A:17.898", B:15.359", C:17.156", D:14.596", E:3.682"
Install Depth 3.682”
Shipping Weight 24 lbs
Humidity 95%
FCC, CE, IC Approved Yes
WEEE & ROHS Yes
DDC Compliant Yes
Auto Video Detection Yes
Auto Video Scaling Yes
Additional Information
Name | KEP Marine PILOT-19T 19-inch Sunlight Viewable Touchscreen LCD Display S/N: 08/00055 (Used, Ex Condition) |
---|---|
Manufacturer | KEP Marine |
SKU | EC...KEP Marine PILOT-19T-55 |
Weight | 24.0000 |
Condition | (Used, Ex Condition) |
Shipping Time | 2 BIZ Day After Payment (FLORIDA STOCK) |
Exchange Credit | No |
Special Price To Date | Jan 1, 2023 |
Manufacturer's Suggested Retail Price | $6,695.00 |
