Details

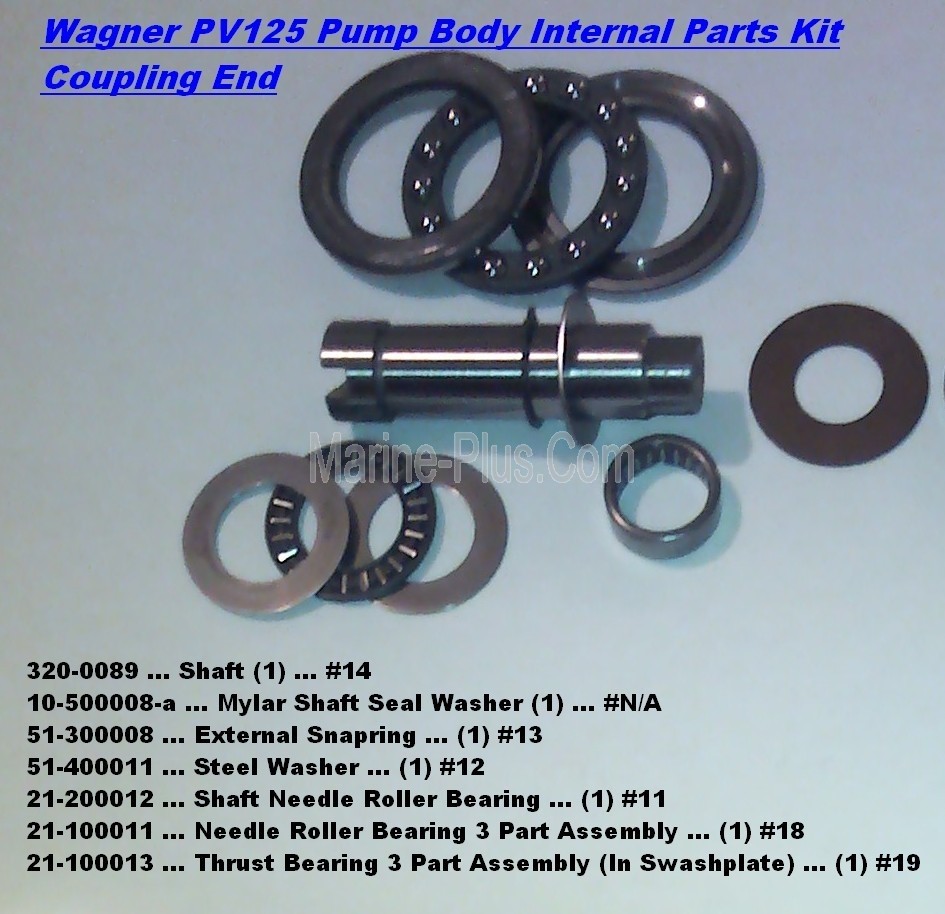

Autopilot & Hydraulic Power Steering Pump REPAIR/SPARES Parts Kit Includes:the Following Items to Rebuild Your Pump Body:
320-0089 ... Shaft (1) ... #14
10-500008-a ... Fiber Shaft Seal Washer (1) ... #N/A
51-300008... External Snapring ... (1) #13
51-400011... Steel Washer ... (1) #12
21-200012 ... Shaft Needle Roller Bearing ... (1) #11
21-100011 ... Needle Roller Bearing 3 Part Assembly ... (1) #18
21-100013 ... Thrust Bearing 3 Part Assembly (In Swashplate) ... (1) #19
NOTE: Lockvalve for this PV125 Pumpset is NOT Available!!!
Pictures ABOVE for More Info ... Pump Body with Piston Section, Lockvalve, Electric Motor, Tach & Driver Bx Not Included!
Check This Page Out ... Wagner PV125 Pumpset Service Gallery for Help Rebuilding this Model Pumpset!
PV125 Seal Kit Also Available in eStore that Includes O-Rings, Shaft Seal, All Loose Bearings & Diagram to Rebuild Your Pump Body & Lockvalve.
Additional Information
| Name | Wagner PV125 Pump Body Internal Parts Kit #119-0100-CE ... Coupling End (Used, Good Useable Condition) |
|---|---|
| Manufacturer | Wagner |
| SKU | 119-0100-CE-SPARES-KIT |
| Weight | 0.1300 |
| Condition | Used in Good Useable Condition! |
| Shipping Time | Ships 1 BIZ Day AFTER Purchase! |
| Exchange Credit | No |
| Special Price To Date | Jul 4, 2025 |
| Manufacturer's Suggested Retail Price | $135.00 |
